Echo 2035

Echo 2035; GMR G.M.R., Georg, (ID = 1196273) Radio Echo 2035; GMR G.M.R., Georg, (ID = 2486978) Radio
Echo 2035; GMR G.M.R., Georg, (ID = 2486979) Radio
Use red slider bar for more.

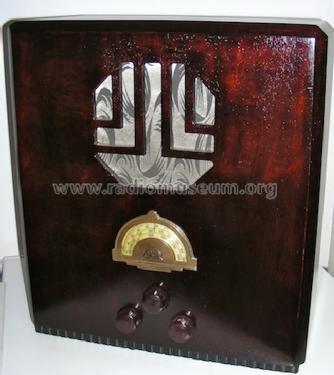

Echo 2035; GMR G.M.R., Georg, (ID = 1196273) Radio
GMR G.M.R., Georg,: Echo 2035 [Radio] ID = 1196273 650x729
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echo 2035, GMR (G.M.R.), Georg, Montastier et Rouge; Montrouge, Paris

Country:  France
Manufacturer / Brand:  GMR (G.M.R.), Georg, Montastier et Rouge; Montrouge, Paris
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: E445 E441 E445 E446 E443N 506
Main principle Superhet with RF-stage; ZF/IF 130,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Echo 2035 - GMR G.M.R., Georg, Montastier
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 415 x 470 x 215 mm / 16.3 x 18.5 x 8.5 inch
Notes

Antifading.

Mentioned in -- Original prospect or advert (La Petite Gironde, 02.12.1932)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from GMR (G.M.R.), Georg, Montastier et Rouge; Montrouge, Paris
Here you find 119 models, 85 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
