Amplificateur à 4 lampes N° 8 1919
Gody, Abel; Amboise (Indre-et-Loire)
- Country
- France
- Manufacturer / Brand
- Gody, Abel; Amboise (Indre-et-Loire)
- Year
- 1919 ?
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 264347
Collection privée (réf.: 243, 496, 1277)
Collection privée (réf.: 243, 496, 1277)
Collection privée (réf.: 243, 496, 1277)
Collection privée (réf.: 243, 496, 1277)
- Number of Tubes
- 4
- Valves / Tubes
- Power type and voltage
- Storage and/or dry batteries / 4, 80 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Amplificateur à 4 lampes N° 8 [1919] - Gody, Abel; Amboise Indre-et-
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 315 x 280 x 180 mm / 12.4 x 11 x 7.1 inch
- Notes
-
2 RF + 1 det. + 1 AF. The first amplifier of this brand.

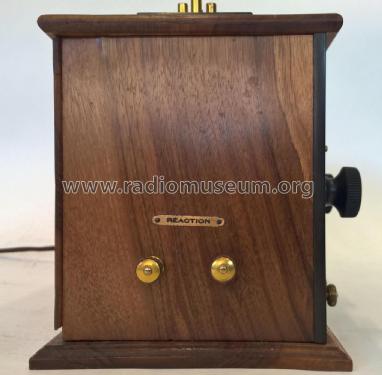

Liaison HF par réactance selfique. Prise pour intercaler la réaction. Commutateur permettant d'utiliser 2 ou 4 lampes.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Literature/Schematics (2)
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 184)
- Literature/Schematics (3)
- TSF Antique 1921 à 1927 (page 82)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
