Nomina Luxe ; Gody, Abel; Amboise (ID = 112138) Radio
Gody, Abel; Amboise: Nomina Luxe [Radio] ID = 112138 870x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nomina Luxe, Gody, Abel; Amboise (Indre-et-Loire)

Country:  France
Manufacturer / Brand:  Gody, Abel; Amboise (Indre-et-Loire)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 58 2B7 47 80 56
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115,130,220,250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Nomina Luxe - Gody, Abel; Amboise Indre-et-

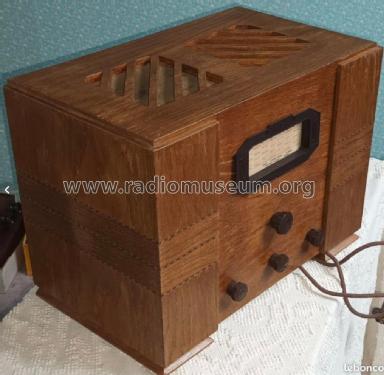

Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 330 x 270 mm / 17.7 x 13 x 10.6 inch

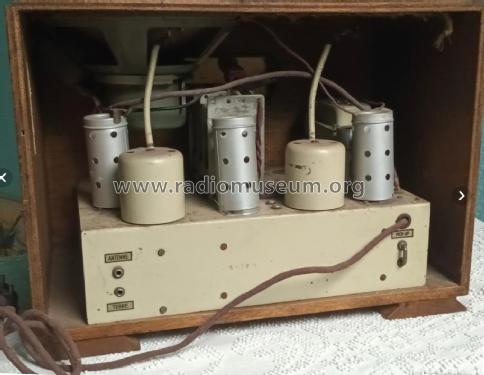

Notes Loudspeaker is mounted horizontally, underneath of cabinet's top. It emits upwards. Chassis can't be removed while loudspeaker is fitted. Unusual dial: The dial is printed-paper illuminated by a 15-Watt bulb from behind. The station indicator's shadow is projected at the dial. Invisible or of no use under ambient daylight. No signs of any back panel at all, no mounting points, no holes, no what so ever. May be it didn't have any? If so, it would have been a light source as well.

Model page created by Werner Braun. See "Data change" for further contributors.
