Minitest 3

Minitest 3; Goerz Electro Ges.m. (ID = 150022) Equipment
Minitest 3; Goerz Electro Ges.m. (ID = 623528) Equipment Minitest 3; Goerz Electro Ges.m. (ID = 150016) Equipment

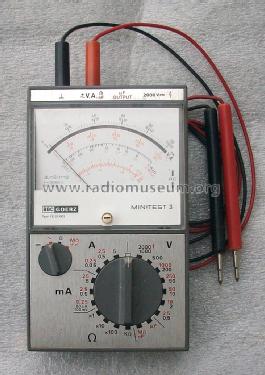

Minitest 3; Goerz Electro Ges.m. (ID = 1936443) Equipment
Use red slider bar for more.
Minitest 3; Goerz Electro Ges.m. (ID = 623528) Equipment
Goerz Electro Ges.m.: Minitest 3 [Equipment] ID = 623528 544x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minitest 3, Goerz Electro Ges.m.b.H., Wien

Country:  Austria
Manufacturer / Brand:  Goerz Electro Ges.m.b.H., Wien
Year: 1973 ?? Category: Service- or Lab Equipment
Details
Power type and voltage Dry Batteries / 2 × 1.5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Minitest 3 - Goerz Electro Ges.m.b.H., Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 100 x 165 x 50 mm / 3.9 x 6.5 x 2 inch
Notes Vielfach-Messinstument, 37 Messbereiche, Genauigkeit 2,5% bei Strommessung; Ri 20.000 Ohm/V bei Gleichstrom, 4.000 Ohm/V bei Wechselstrom. Drehschalter zur Bereichsumstellung, Sicherung 6,3A als Überlastschutz. Schutzdioden antiparalell zu Messwerk, Batterien zur Widerstandsmessung.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.



All listed radios etc. from Goerz Electro Ges.m.b.H., Wien
Here you find 51 models, 49 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
