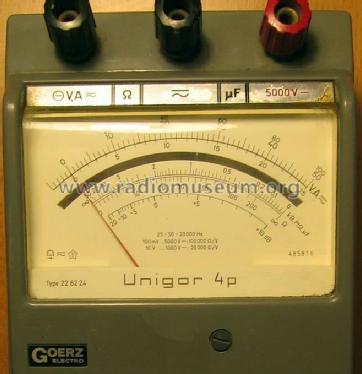

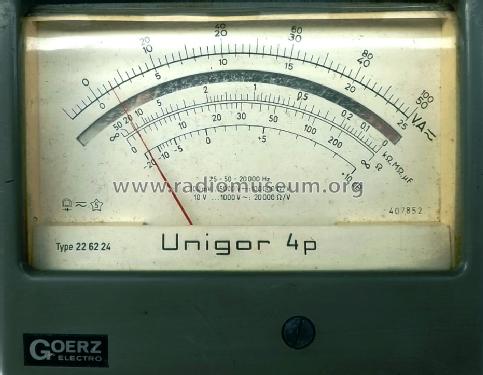

Unigor 4p Type 226224

Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1431767) Equipment
Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 369776) Equipment Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1259358) Equipment
Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1259360) Equipment Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1259361) Equipment
Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1309839) Equipment Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1309840) Equipment
Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1309841) Equipment Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1309842) Equipment
Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1309843) Equipment Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 1309844) Equipment
Use red slider bar for more.
Unigor 4p Type 226224; Goerz Electro Ges.m. (ID = 369776) Equipment
Goerz Electro Ges.m.: Unigor 4p Type 226224 [Equipment] ID = 369776 394x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unigor 4p Type 226224, Goerz Electro Ges.m.b.H., Wien

Country:  Austria
Manufacturer / Brand:  Goerz Electro Ges.m.b.H., Wien
Year: 1968 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 1 × 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Unigor 4p Type 226224 - Goerz Electro Ges.m.b.H., Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Vielfachmessinstrument. Messbereich V DC 0.1 V bis 5000 V Messbereich V AC 10 V bis 1000 V Messbereich A DC: 10 uA bis 1 A. Im Ohmbereich sind 5 Messbereiche möglich. Kapazität 2000pF bis 5uF (100 bis 240V AC)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
