Maxamp 30; Goodmans Industries (ID = 978449) Ampl/Mixer

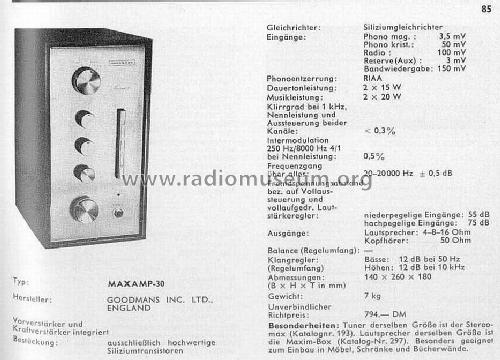

Goodmans Industries: Maxamp 30 [Ampl/Mixer] ID = 978449 595x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Maxamp 30, Goodmans Industries Ltd.; Wembley, Middlesex

Country:  Great Britain (UK)
Manufacturer / Brand:  Goodmans Industries Ltd.; Wembley, Middlesex
Year: 1966 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 18:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 30 W (40 W max.)
from Radiomuseum.org Model: Maxamp 30 - Goodmans Industries Ltd.;
Material Various materials
Dimensions (WHD) 140 x 260 x 180 mm / 5.5 x 10.2 x 7.1 inch
Notes

Goodmans Maxamp 30

HiFi stereo amplifier of same front-size as the Maxim speaker and the Stereomax tuner. Frequency response 20Hz-20kHz. Headphone output 50 ohms. Speaker connections for 4 Ω and 8 to 15 Ω, THD less 0,3 % (15 watts 8 Ω - 1.000 Hz)

Power output:

  • 2 x 15 watts (RMS) into 8Ω
  • 2 x 10 watts (RMS) into 4Ω or 15 Ω



Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 794.00 DM
Source of data -- Original prospect or advert
Mentioned in High Fidelity Jahrbuch 1967/68

Model page created by Georg Richter. See "Data change" for further contributors.



All listed radios etc. from Goodmans Industries Ltd.; Wembley, Middlesex
Here you find 62 models, 56 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
