• Year
  • 1972 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 288501

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Speaker System RB 35 - Goodmans Industries Ltd.;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 320 x 620 x 250 mm / 12.6 x 24.4 x 9.8 inch
  • Notes
  • HiFi Three-Way Speaker System Model Goodmans RB 35
    Frequency Range 40 - 20000 Hz
    Impedance 4 - 8 Ω
    Music Power 60 W
    Internal Volume 35 litres
    Chassis:
    1x 260 mm Bass Unit
    1x 85 mm Mid-Range-Unit (1000-6000Hz)
    1x 26 mm High Frequency Dome Radiator
    Frequency Dividing and Integrating Network (Crossover Frequencies 1000 and 6000 Hz)
    Finish: Teak or Walnut Effect



  • Net weight (2.2 lb = 1 kg)
  • 12.5 kg / 27 lb 8.5 oz (27.533 lb)
  • Mentioned in

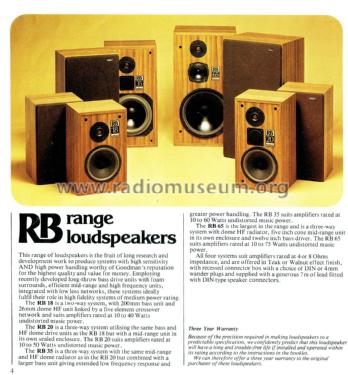

  • -- Original prospect or advert (Goodmans High Fidelity Catalogue)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
