For model 11-701, Goodrich, B.F.; Akron,Ohio

Country:  United States of America (USA)
Manufacturer / Brand:  Goodrich, B.F.; Akron,Ohio
Brand

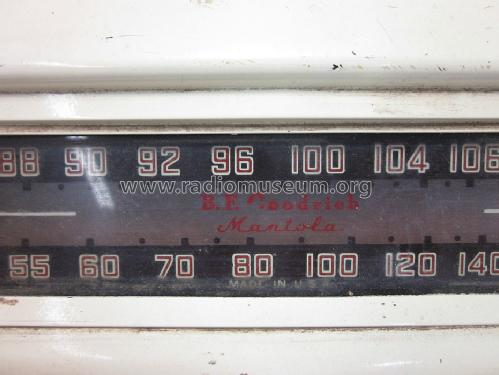

Mantola
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 12BA6 12BE6 12BA6 12BA6 12AL5 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 11-701 - Goodrich, B.F.; Akron,Ohio

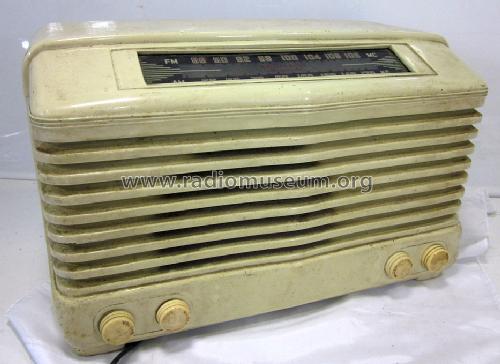

Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 230 x 200 mm / 14.6 x 9.1 x 7.9 inch
Notes Colors available: Walnut and Ivory.

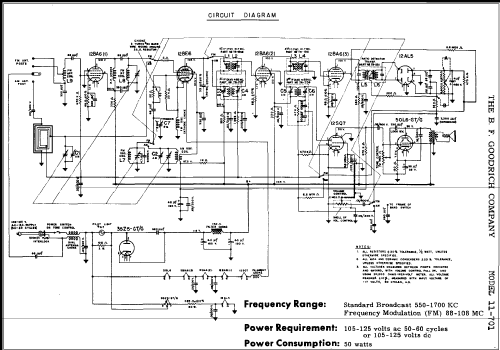

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before

Model page created by Egon Penker. See "Data change" for further contributors.
