Mantola 92506

Mantola 92506 ; Goodrich, B.F.; (ID = 96394) Radio

Mantola 92506 ; Goodrich, B.F.; (ID = 96395) Radio

Mantola 92506 ; Goodrich, B.F.; (ID = 288146) Radio

Mantola 92506 ; Goodrich, B.F.; (ID = 288147) Radio
Mantola 92506 ; Goodrich, B.F.; (ID = 1241040) Radio Mantola 92506 ; Goodrich, B.F.; (ID = 1241045) Radio
Mantola 92506 ; Goodrich, B.F.; (ID = 1241041) Radio Mantola 92506 ; Goodrich, B.F.; (ID = 1241039) Radio
Mantola 92506 ; Goodrich, B.F.; (ID = 1241048) Radio Mantola 92506 ; Goodrich, B.F.; (ID = 1241050) Radio
Mantola 92506 ; Goodrich, B.F.; (ID = 1241051) Radio Mantola 92506 ; Goodrich, B.F.; (ID = 1241053) Radio
Use red slider bar for more.
Mantola 92506 ; Goodrich, B.F.; (ID = 1241040) Radio
Goodrich, B.F.;: Mantola 92506 [Radio] ID = 1241040 700x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mantola 92506, Goodrich, B.F.; Akron,Ohio

Country:  United States of America (USA)
Manufacturer / Brand:  Goodrich, B.F.; Akron,Ohio
Brand

Mantola
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SJ7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Mantola 92506 - Goodrich, B.F.; Akron,Ohio
Shape Tablemodel, with any shape - general.
Notes Color=Mahogany
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before

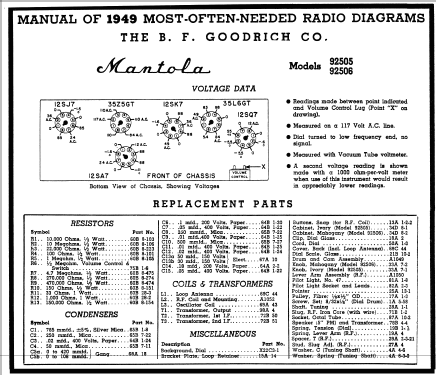

Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.



All listed radios etc. from Goodrich, B.F.; Akron,Ohio
Here you find 111 models, 51 with images and 102 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
