• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 43275
    • Brand: Mantola

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 117/ 90 & 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.25 inch = 15.9 cm
  • from Radiomuseum.org
  • Model: R622 - Goodrich, B.F.; Akron,Ohio
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Photofact see under Trade name: Mantola.
  • External source of data
  • Ernst Erb

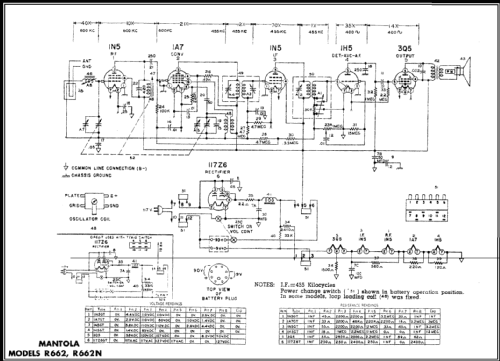

  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
