R76162
Goodrich, B.F.; Akron,Ohio
- Country
- United States of America (USA)
- Manufacturer / Brand
- Goodrich, B.F.; Akron,Ohio
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121151
-
- Brand: Mantola
SAMS Photofact

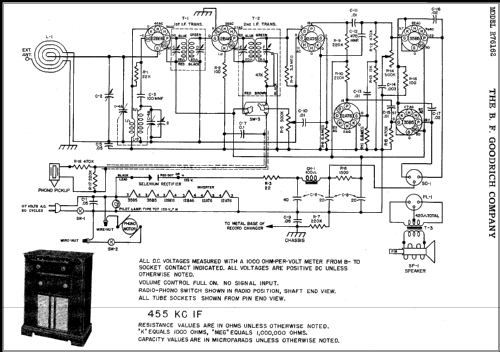

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R76162 - Goodrich, B.F.; Akron,Ohio
- Shape
- Console with any shape - in general
- Notes
- Selenium Rectifier.
Photofact see under Trade name: Mantola
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 40, Folder 10; see under Mantola)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
