Function Generator GFG-3015

Function Generator GFG-3015; Good Will (ID = 2142692) Equipment Function Generator GFG-3015; Good Will (ID = 2142694) Equipment

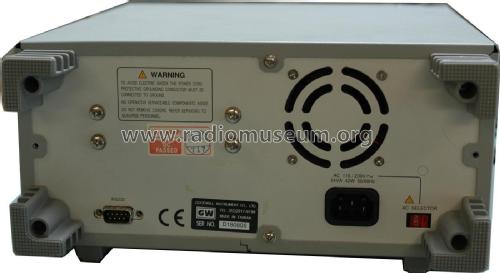

Function Generator GFG-3015; Good Will (ID = 2142696) Equipment
Use red slider bar for more.
Function Generator GFG-3015; Good Will (ID = 2142692) Equipment
Good Will: Function Generator GFG-3015 [Equipment] ID = 2142692 1400x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model Function Generator GFG-3015, Good Will Instruments Co., Ltd.; Taipei

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Good Will Instruments Co., Ltd.; Taipei
Year: 1998 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle none
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110/230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Function Generator GFG-3015 - Good Will Instruments Co., Ltd
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 290 x 142 x 346 mm / 11.4 x 5.6 x 13.6 inch
Notes

GFG-3015 is a functional Function generator that applies Frequency feedback control system technique and can generate high frequency accuracy with high resolution. Its main signal source can generate waveforms including sine wave, square wave, triangle wave, and ramp wave. There are additional features listed as follows:


—- Output Waveforms of Sine, Square, Triangle, Ramp, Pulse, AM, FM,
  Sweep
- Trigger and Gate or Burst
—- Wide output frequency range 0.01Hz ~ 15MHz
—- High frequency accuracy 0.02% ± 5 count
—- Maximum frequency resolution 10mHz
—- Dual displays indicate frequency and amplitude or other necessary
  information
- Built-in 6-digit INT/EXT Function Counter and up to 150 MHz
-— INT/EXT AM/FM Modulation with internal modulation signal output
- LIN/LOG Sweep Mode with internal sweep signal output
-— VCF of 100:1 EXT Frequency Control
— - SYNC Output
— - TTL Output
-  Synchronization GCV Output.
- — Variable DC Offset Control
— - Output Overload Protection
— - RS232 Interface Standard

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Pius Steiner. See "Data change" for further contributors.
