Laboratory Series Tone Arm

Grado Laboratories Inc.; Brooklyn (NY)

  • Year
  • 1960–1964
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 157097

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Laboratory Series Tone Arm - Grado Laboratories Inc.;
  • Notes

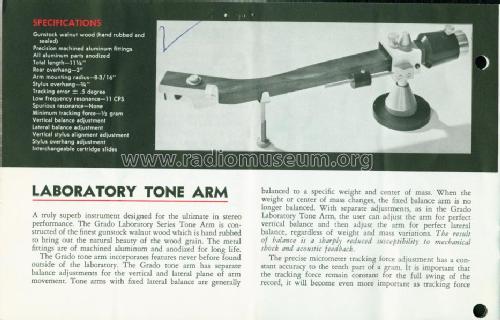

  • Stereo Wired Tonearm

    Gunstock Walnut Wood with machined aluminum parts
    Effective length: 11 1/4" Overhang: 3"
    Mounting radius: 8 3/16"

    Stylus Overhang: 3/4"

    Tracking Error: +- .5 degree

    Minimum Tracking Force: 1/2 gram

    Popular in USA in combination with Thorens TD124



  • Price in first year of sale
  • 39.50 usd
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
