• Year
  • 1965/1966
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 110801

Click on the schematic thumbnail to request the schematic as a free document.

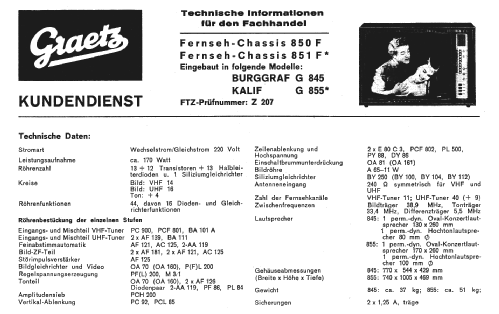

 Technical Specifications

  • Number of Tubes
  • 13
  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

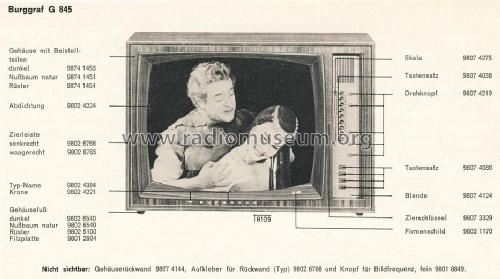

  • Model: Burggraf G845 - Graetz, Altena Westfalen
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 770 x 540 x 430 mm / 30.3 x 21.3 x 16.9 inch
  • Notes
  • VHF/UHF.
  • Net weight (2.2 lb = 1 kg)
  • 36 kg / 79 lb 4.7 oz (79.295 lb)
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
