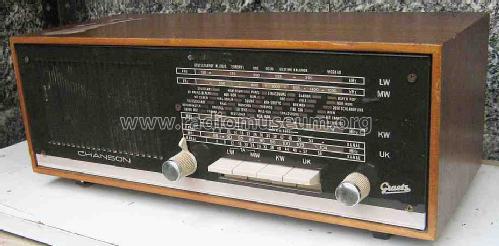

For model Chanson 02F, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF134 AF125 AF126 AF126 AF126 AF126 AC122 AC122 AD152 AA112 AA112 AA112 AA112
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Chanson 02F - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 370 x 140 x 150 mm / 14.6 x 5.5 x 5.9 inch
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 1'995.00 ATS
External source of data erb
Source of data Handbuch VDRG 1966/1967
