• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28746

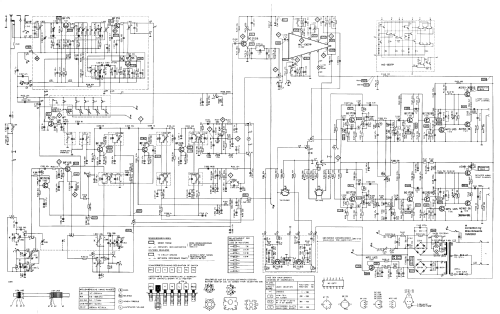

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors
• BF175 BF255 BF125 BC252 BC170 BC172 AD161 AD162 BC253 MPS-U05

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: COMEDIA electronic 302 5252 01 15 - Graetz, Altena Westfalen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 490 x 88 x 295 mm / 19.3 x 3.5 x 11.6 inch

• Notes
• ICs: 2.
  Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 10 W (Sinus), zwei Lautsprecherboxen (486×280×120 mm) gehören zum Lieferumfang.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 678.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973
