Farb-Signalgeber MF 51

Farb-Signalgeber MF 51; Graetz, Altena (ID = 270993) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 270994) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 270995) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 270996) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 270999) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 271003) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 271004) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 271005) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 271006) Equipment

Farb-Signalgeber MF 51; Graetz, Altena (ID = 271007) Equipment
Farb-Signalgeber MF 51; Graetz, Altena (ID = 283874) Equipment Farb-Signalgeber MF 51; Graetz, Altena (ID = 283880) Equipment
Farb-Signalgeber MF 51; Graetz, Altena (ID = 283882) Equipment Farb-Signalgeber MF 51; Graetz, Altena (ID = 209308) Equipment
Farb-Signalgeber MF 51; Graetz, Altena (ID = 283875) Equipment Farb-Signalgeber MF 51; Graetz, Altena (ID = 283878) Equipment
Farb-Signalgeber MF 51; Graetz, Altena (ID = 2130019) Equipment Farb-Signalgeber MF 51; Graetz, Altena (ID = 2130020) Equipment
Farb-Signalgeber MF 51; Graetz, Altena (ID = 2130021) Equipment
Use red slider bar for more.
Farb-Signalgeber MF 51; Graetz, Altena (ID = 283874) Equipment
Graetz, Altena: Farb-Signalgeber MF 51 [Equipment] ID = 283874 839x512
Select picture or schematic to display from thumbnails on the right and click for download.
For model Farb-Signalgeber MF 51, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1967 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 29:
Main principle ZF/IF 4,43 / 5,5 kHz; 1 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220 / 8×1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Farb-Signalgeber MF 51 - Graetz, Altena Westfalen
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 285 x 160 x 90 mm / 11.2 x 6.3 x 3.5 inch

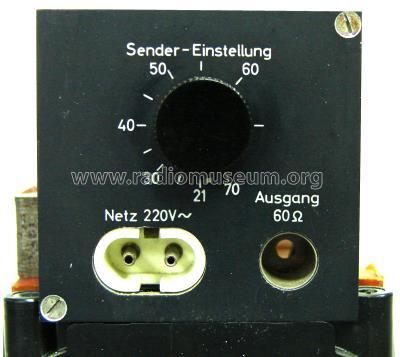

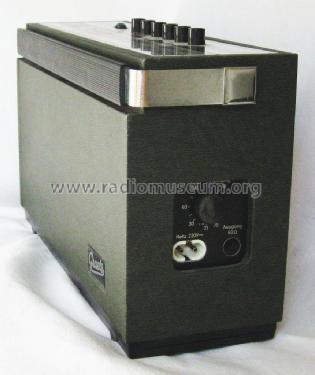

Notes Tragbarer PAL/NTSC 626/50 Testgenerator mit UHF-Band IV/V; Modulator bei 5 mV HF; regelbare Farbsättigung, Tonträger 5,5 MHz modulierbar, verschiedene Prüfsignale wählbar. UHF-Kanal 24 bis 69 durchstimmbar (Band IV/V), 10 Farbbalken pro Bildbreite sowie Gitternetz H/V möglich, Leistungsaufnahme 2 VA bei 230 V, 48 mA bei Batteriebetrieb (8 x 1,5 V Monozellen, Spannungsgrenzen 8,5 - 12,5 V).
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 798.00 DM
Collectors' prices
Mentioned in Funkschau (Heft 8 1967)

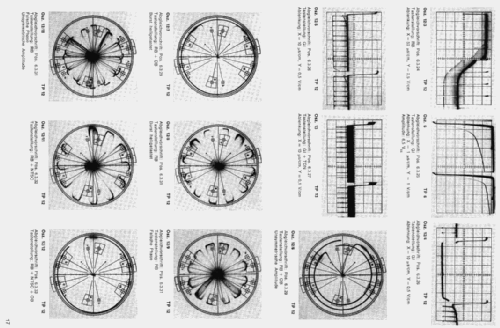

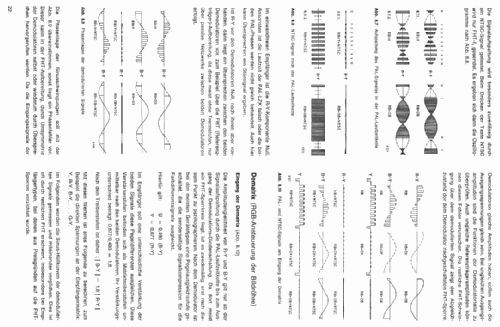

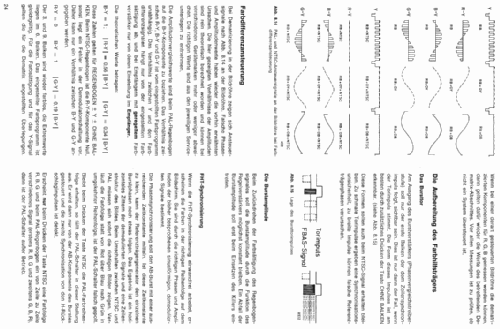

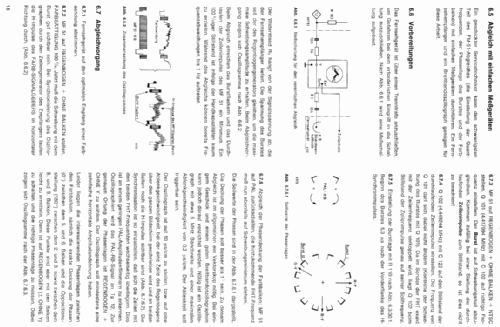

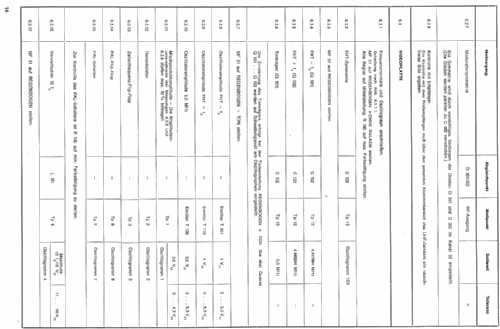

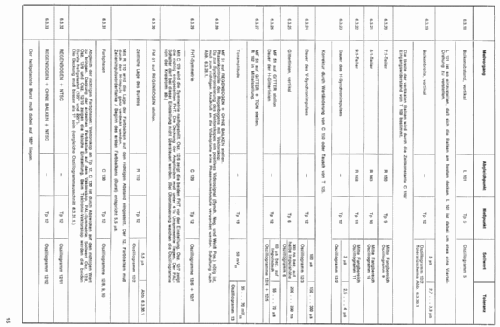

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
