Flip 42F

Flip 42F; Graetz, Altena (ID = 207873) Radio

Flip 42F; Graetz, Altena (ID = 207874) Radio

Flip 42F; Graetz, Altena (ID = 2131501) Radio

Flip 42F; Graetz, Altena (ID = 2131502) Radio
Flip 42F; Graetz, Altena (ID = 1433620) Radio Flip 42F; Graetz, Altena (ID = 1433621) Radio
Flip 42F; Graetz, Altena (ID = 47830) Radio Flip 42F; Graetz, Altena (ID = 526786) Radio
Flip 42F; Graetz, Altena (ID = 1433622) Radio Flip 42F; Graetz, Altena (ID = 1433623) Radio
Flip 42F; Graetz, Altena (ID = 2366273) Radio
Use red slider bar for more.
Flip 42F; Graetz, Altena (ID = 1433620) Radio

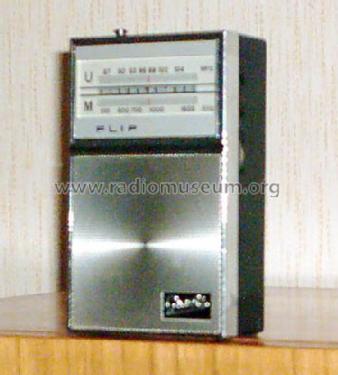

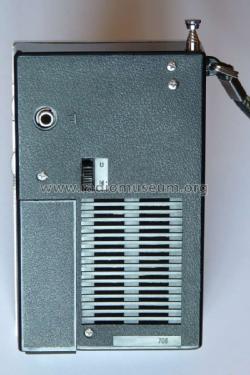

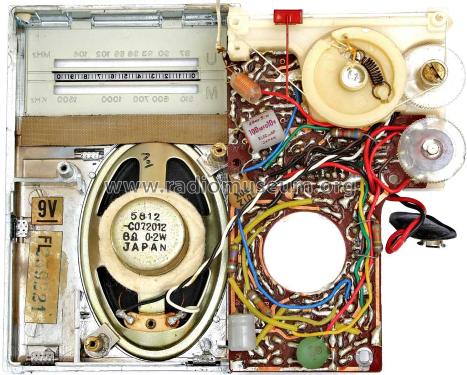

Graetz, Altena: Flip 42F [Radio] ID = 1433620 828x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Flip 42F, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA235 2SA235 2SB75 2SA350 2SA350 2SA234 2SB75 2SB75 2SB77 2SB77
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.13 W (unknown quality)
from Radiomuseum.org Model: Flip 42F - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 120 x 35 mm / 3 x 4.7 x 1.4 inch
Notes

Automatische Scharfabstimmung für FM.

Ovallautsprecher 6,8 x 4,5 cm, das Gehäuse besteht im vorderen Teil aus Spritzguss

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)
Price in first year of sale 105.00 DM
Source of data Taxliste Franzis Verlag

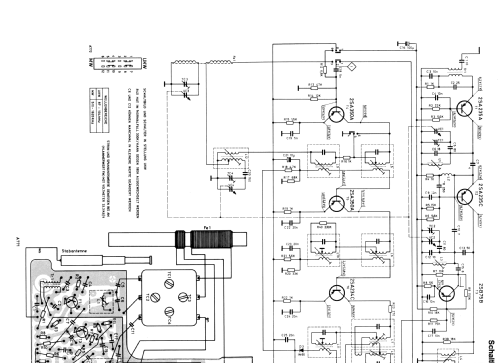

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
