Form 100 electronic weiss

Graetz, Altena (Westfalen)

Data

Forum

Pictures

Country
Germany

Manufacturer / Brand
Graetz, Altena (Westfalen)

Year
1976–1978

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
75637

Schematics

Form 100 electronic; Graetz, Altena (ID = 92730) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 92732) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 92734) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 92736) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 92738) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 92729) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 93917) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 93918) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 93920) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 93921) Radio — Graetz, Altena Form 100 electronic (3)

Form 100 electronic; Graetz, Altena (ID = 276620) Radio — Graetz, Altena Form 100 electronic (1)

Form 100 electronic; Graetz, Altena (ID = 120742) Radio — Graetz, Altena Form 100 electronic (2)
ebay: forbiddenplanet56

Form 100 electronic; Graetz, Altena (ID = 91902) Radio — Graetz, Altena Form 100 electronic (2)

Form 100 electronic; Graetz, Altena (ID = 1139093) Radio — Graetz, Altena Form 100 electronic (1)

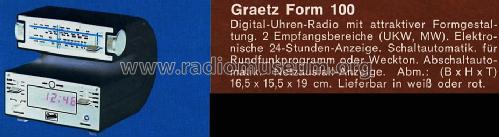

Form 100 electronic; Graetz, Altena (ID = 1282635) Radio — Graetz, Altena Form 100 electronic (2)
Scan aus einem Planet-Prospekt von 1977

Form 100 electronic; Graetz, Altena (ID = 2218256) Radio — Graetz, Altena Form 100 electronic (1)

Form 100 electronic; Graetz, Altena (ID = 2680413) Radio — Graetz, Altena Form 100 electronic (2)
Q: Produkt-Katalog '77

Form 100 electronic; Graetz, Altena (ID = 2680414) Radio — Graetz, Altena Form 100 electronic (2)
Q: Graetz, Produkt-Katalog '77

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
13

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Tuned circuits
5 AM circuit(s) 7 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Form 100 electronic [weiss] - Graetz, Altena Westfalen

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
165 x 155 x 190 mm / 6.5 x 6.1 x 7.5 inch

Notes
Uhren IC: S1998.
Lautsprecher: 7,7 x 12,5 cm
Elektronische Helligkeitsregelung, Netzausfallanzeige durch Blinken der 1. Ziffer der Digitalanzeige. Elektromische 24-Stunden-Anzeige. Schaltautomatik für Rundfunkprogramm oder Weckton, Abschaltautomatik. Lieferbar in den Farben weiß oder rot. Ein Gerät auch für die Planet UE Handelsgruppe.

Net weight (2.2 lb = 1 kg)
1.7 kg / 3 lb 11.9 oz (3.744 lb)

Source of data
Handbuch VDRG 1977/1978

Literature/Schematics (1)
-- Original-techn. papers.

Literature/Schematics (2)
- - Manufacturers Literature

Author
Model page created by Bernd Pötzsch. See "Data change" for further contributors.

Other Models
Here you find 759 models, 674 with images and 586 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
