Grazia Automatic 305 52330163 schwarz

Graetz, Altena (Westfalen)

  • Year
  • 1975/1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 76676

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220; (4 × 1,5) Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 cm = 3.5 inch
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Grazia Automatic 305 52330163 [schwarz] - Graetz, Altena Westfalen
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 215 x 130 x 70 mm / 8.5 x 5.1 x 2.8 inch
  • Notes
  • Graetz Grazia Automatic 305.
    UKW-Bereich bis 104 MHz.
    Siehe auch 52330165 = blau und 52330167 = rot.
  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)

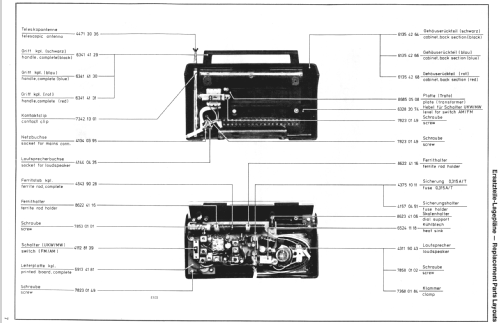

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
