Kalif Color 1148

Graetz, Altena (Westfalen)

Data
Forum
Pictures
Collections

  • Year
  • 1968–1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 341331

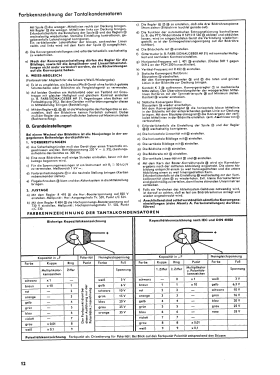

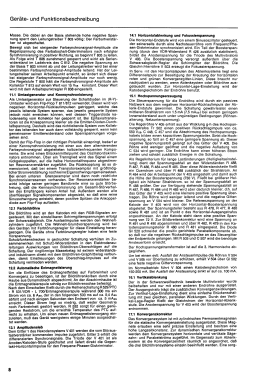

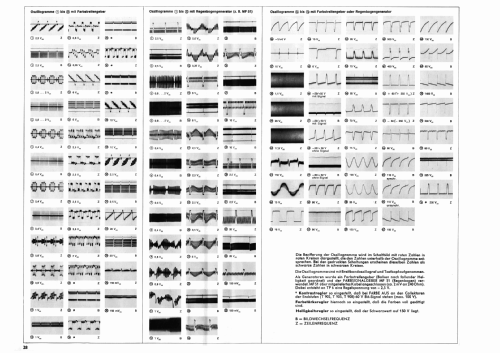

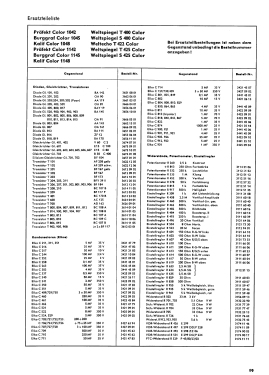

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Number of Transistors
  • 44
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Kalif Color 1148 - Graetz, Altena Westfalen
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 1010 x 915 x 590 mm / 39.8 x 36 x 23.2 inch
  • Notes

  • Graetz Kalif Color 1148, 63-cm Farbfernseh-Standgerät
    Transistorbestückter VHF-UHF-Allbereich-Tuner

    Ausführung: Edelholzfurniert, Farbe Nußbaum, natur mattiert

    Hochspannung 25kV, stabilisiert

    Auf Wunsch:
    Fernbedienung Graetz FB400 Color (Lautstärke, Helligkeit, Farbsättigung)

    Technische Daten wie Graetz Burggraf Color 1145.

  • Net weight (2.2 lb = 1 kg)
  • 57 kg / 125 lb 8.8 oz (125.551 lb)
  • Price in first year of sale
  • 2,495.00 DM
  • Mentioned in
  • -- Original prospect or advert (Wirth & Bucher - Fernsehempfänger 1969/70 Seite 6)
  • Literature/Schematics (1)
  • Handbuch RFP 1968/69 S.25
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
