• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28301

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• CS9016 CS9018 CS9018 M193 CS9018 CS1312 2SB56 CS9012 AC117 AC175 CS9012

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

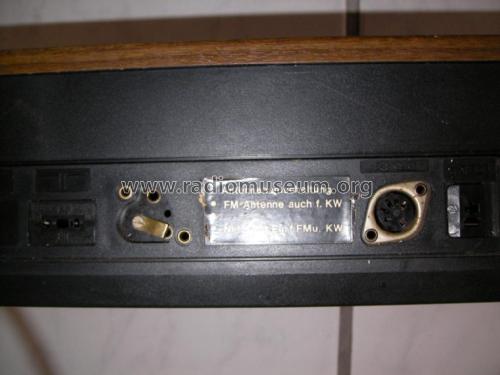

• Model: Komtess automatic 301 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 90 x 145 mm / 16.1 x 3.5 x 5.7 inch

• Notes
• 2 Ausführungen:
  52410301 = Nußbaum, hell matt
  52410303 = Schleiflack (altweiß)
  Gespreiztes 49-m-Band; nicht abschaltbare automatische UKW-Scharfabstimmung.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Price in first year of sale
• 199.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

• Mentioned in
• -- Original-techn. papers.
