Maharani F793
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1964/1965
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 109898
TV and legs missing
added power supply

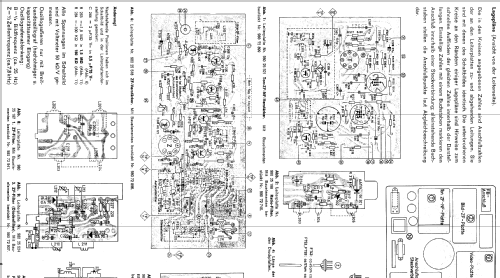

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer); Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 6 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Maharani F793 - Graetz, Altena Westfalen
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1690 x 955 x 490 mm / 66.5 x 37.6 x 19.3 inch
- Notes
- Fernseh-Chassis = Burggraf F743;
Rundfunk-Chassis = Truhenbausteine HF1323 und NF1325;
Phono-Chassis = Perpetuum-Ebner PE66.
- Net weight (2.2 lb = 1 kg)
- 90 kg / 198 lb 3.8 oz (198.238 lb)
- Price in first year of sale
- 3,398.00 DM
- Source of data
- Handbuch VDRG 1964/1965
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
