• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 102758

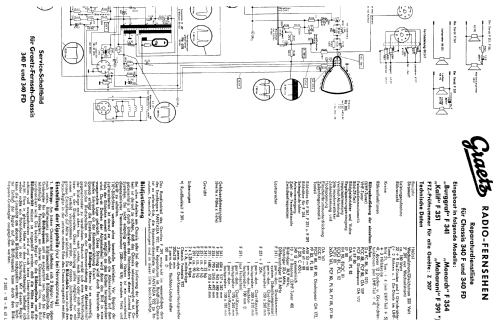

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• AW61-88

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Monarch F354 - Graetz, Altena Westfalen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 790 x 1045 x 492 mm / 31.1 x 41.1 x 19.4 inch

• Notes

• Technische Daten wie Burggraf F341, jedoch 61-cm-Bildröhre im Standgehäuse mit verschließbaren Türen und Füßen.

  Ersatzzeilentrafo

• Net weight (2.2 lb = 1 kg)
• 66 kg / 145 lb 6 oz (145.374 lb)

• Price in first year of sale
• 1,448.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
