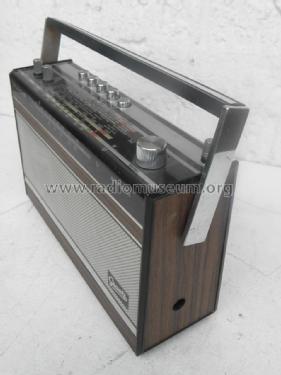

Graetz, Altena: Page 300 automatic 521403 [Radio] ID = 14072 726x485

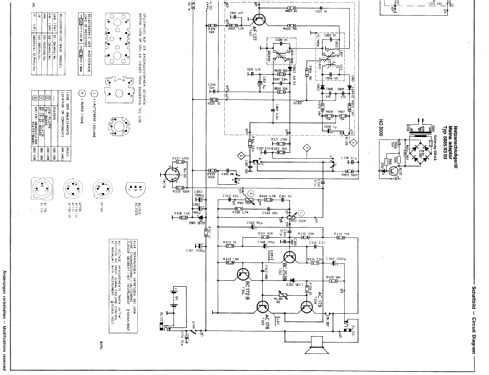

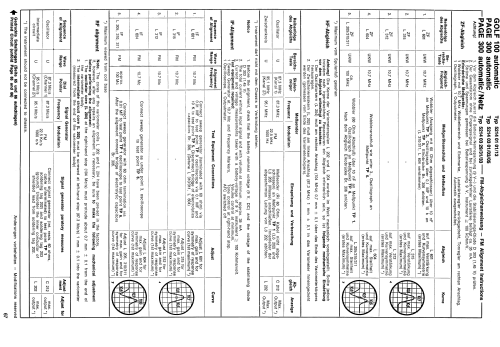

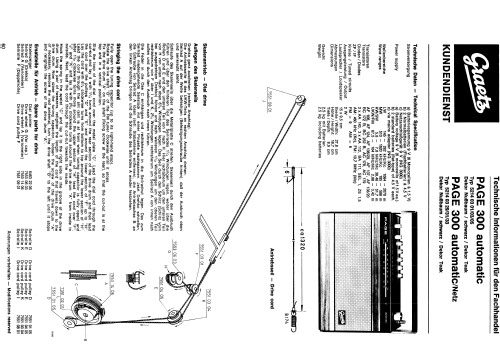

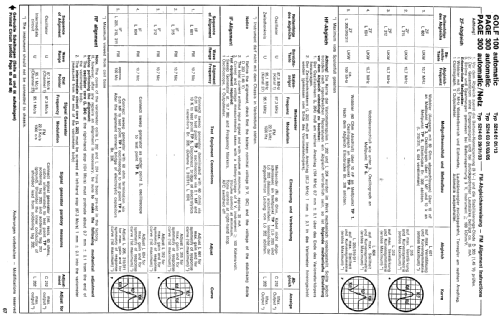

Select picture or schematic to display from thumbnails on the right and click for download.
For model Page 300 automatic 521403, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF124 AF136 AF137 AF138 BC172 BC252 AC178 AC179
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6× 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Page 300 automatic 521403 - Graetz, Altena Westfalen
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 278 x 172 x 89 mm / 10.9 x 6.8 x 3.5 inch
Notes Externes Netzteil NG3000.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
