Page L45C; Graetz, Altena (ID = 581934) Radio

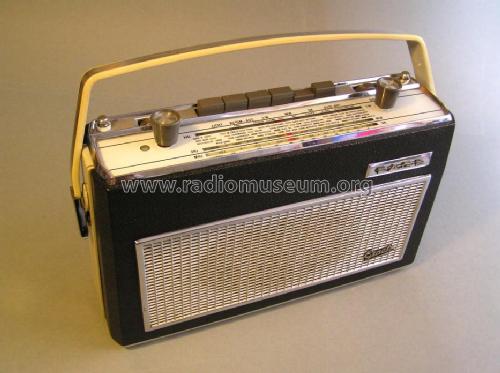

Graetz, Altena: Page L45C [Radio] ID = 581934 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Page L45C, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF136 AF138 AF137 AC122 AC122 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / (4 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Page L45C - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 170 x 80 mm / 10.6 x 6.7 x 3.1 inch
Notes Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Collectors' prices
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
