Pagino K43C

Pagino K43C; Graetz, Altena (ID = 330040) Radio

Pagino K43C; Graetz, Altena (ID = 330041) Radio

Pagino K43C; Graetz, Altena (ID = 330042) Radio

Pagino K43C; Graetz, Altena (ID = 330043) Radio

Pagino K43C; Graetz, Altena (ID = 330045) Radio

Pagino K43C; Graetz, Altena (ID = 1865399) Radio
Pagino K43C; Graetz, Altena (ID = 827063) Radio Pagino K43C; Graetz, Altena (ID = 779598) Radio
Pagino K43C; Graetz, Altena (ID = 963852) Radio Pagino K43C; Graetz, Altena (ID = 963853) Radio
Pagino K43C; Graetz, Altena (ID = 963854) Radio Pagino K43C; Graetz, Altena (ID = 1383027) Radio
Use red slider bar for more.
Pagino K43C; Graetz, Altena (ID = 827063) Radio

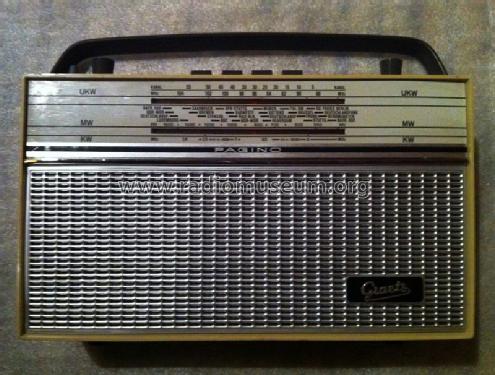

Graetz, Altena: Pagino K43C [Radio] ID = 827063 865x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pagino K43C, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF134 AF125 AF105 AF105a AF105 AC122 AC122 AC117 AC117
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Pagino K43C - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 170 x 80 mm / 11 x 6.7 x 3.1 inch
Notes Technische Daten wie Pagino L43C, jedoch KW 41- bis 49-m-Band statt LW.
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Collectors' prices
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
