Pagino K43F

Pagino K43F; Graetz, Altena (ID = 330071) Radio

Pagino K43F; Graetz, Altena (ID = 330072) Radio

Pagino K43F; Graetz, Altena (ID = 330073) Radio

Pagino K43F; Graetz, Altena (ID = 330074) Radio

Pagino K43F; Graetz, Altena (ID = 330075) Radio

Pagino K43F; Graetz, Altena (ID = 1862601) Radio
Pagino K43F; Graetz, Altena (ID = 570393) Radio Pagino K43F; Graetz, Altena (ID = 570387) Radio
Pagino K43F; Graetz, Altena (ID = 570384) Radio Pagino K43F; Graetz, Altena (ID = 534960) Radio
Pagino K43F; Graetz, Altena (ID = 570386) Radio Pagino K43F; Graetz, Altena (ID = 570389) Radio
Pagino K43F; Graetz, Altena (ID = 570390) Radio Pagino K43F; Graetz, Altena (ID = 570392) Radio
Pagino K43F; Graetz, Altena (ID = 2589548) Radio
Use red slider bar for more.
Pagino K43F; Graetz, Altena (ID = 570393) Radio

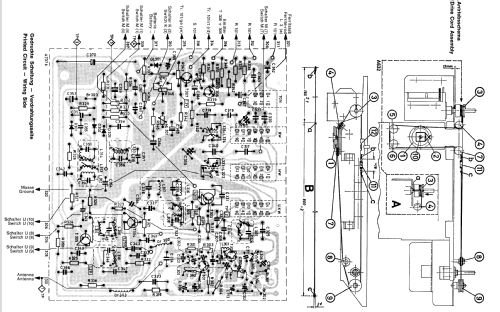

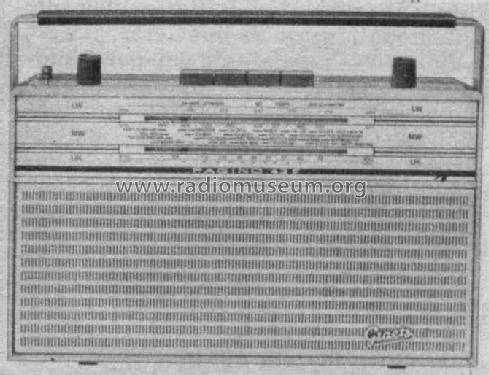

Graetz, Altena: Pagino K43F [Radio] ID = 570393 485x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pagino K43F, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF134 AF125 AF137 AF137 AF138 AC122 AC122 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Pagino K43F - Graetz, Altena Westfalen
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 160 x 80 mm / 11 x 6.3 x 3.1 inch
Notes Optionaler Netzteil.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
