Phonobox 3284WET

Phonobox 3284WET; Graetz, Altena (ID = 717634) Radio

Phonobox 3284WET; Graetz, Altena (ID = 717635) Radio
Phonobox 3284WET; Graetz, Altena (ID = 422039) Radio Phonobox 3284WET; Graetz, Altena (ID = 422042) Radio
Phonobox 3284WET; Graetz, Altena (ID = 422041) Radio Phonobox 3284WET; Graetz, Altena (ID = 422040) Radio
Phonobox 3284WET; Graetz, Altena (ID = 422043) Radio Phonobox 3284WET; Graetz, Altena (ID = 657506) Radio
Phonobox 3284WET; Graetz, Altena (ID = 657507) Radio Phonobox 3284WET; Graetz, Altena (ID = 1642833) Radio
Phonobox 3284WET; Graetz, Altena (ID = 1642834) Radio Phonobox 3284WET; Graetz, Altena (ID = 1643067) Radio
Use red slider bar for more.
Phonobox 3284WET; Graetz, Altena (ID = 422039) Radio

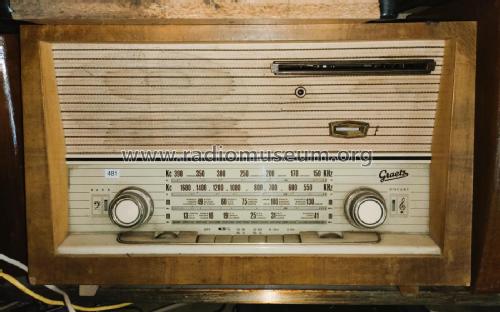

Graetz, Altena: Phonobox 3284WET [Radio] ID = 422039 600x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonobox 3284WET, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC91 EL41 EM84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 180; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Phonobox 3284WET - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 335 x 280 mm / 21.3 x 13.2 x 11 inch
Notes With record player: Philips Mignon AG2013D/76d (Plattenschlucker).
LW 150-390kc, MW 510-1620kc, KW/SW1 13-41m, KW/SW2 49-130m.
One oval main speaker (front) 260 x 150 mm, two lateral tweeters (Hochtöner).
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Alfred Zeeb. See "Data change" for further contributors.
