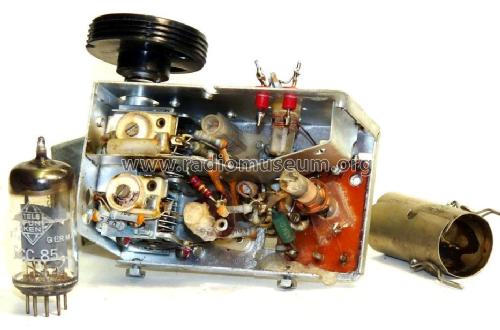

Polka 1313L; Graetz, Altena (ID = 1597973) Radio Polka 1313L; Graetz, Altena (ID = 1597974) Radio
Polka 1313L; Graetz, Altena (ID = 1597975) Radio Polka 1313L; Graetz, Altena (ID = 1787747) Radio
Polka 1313L; Graetz, Altena (ID = 1787748) Radio Polka 1313L; Graetz, Altena (ID = 1787749) Radio
Polka 1313L; Graetz, Altena (ID = 1787750) Radio
Use red slider bar for more.
Polka 1313L; Graetz, Altena (ID = 1687475) Radio
Graetz, Altena: Polka 1313L [Radio] ID = 1687475 852x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Polka 1313L poliert, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Polka 1313L [poliert] - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 290 x 195 mm / 22.4 x 11.4 x 7.7 inch
Notes Dioden: 2×AA113.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 438.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
