Super 290GWM UF89

Super 290GWM; Graetz, Altena (ID = 1388202) Radio Super 290GWM; Graetz, Altena (ID = 1565594) Radio

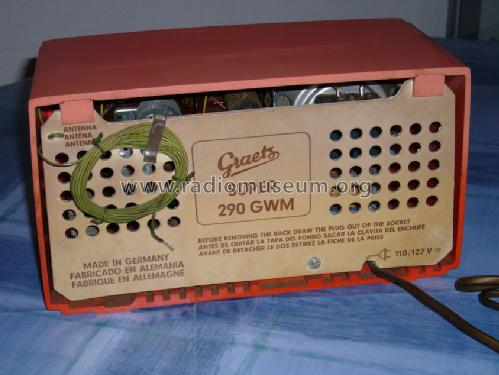

Super 290GWM; Graetz, Altena (ID = 1388203) Radio Super 290GWM; Graetz, Altena (ID = 1388204) Radio
Super 290GWM; Graetz, Altena (ID = 1388205) Radio Super 290GWM; Graetz, Altena (ID = 1475676) Radio
Use red slider bar for more.
Super 290GWM; Graetz, Altena (ID = 1388202) Radio
Graetz, Altena: Super 290GWM [Radio] ID = 1388202 845x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 290GWM UF89, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UF89 UBF89 UCL82 UY85
schematic requested
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-127 / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Super 290GWM [UF89] - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 260 x 145 x 130 mm / 10.2 x 5.7 x 5.1 inch
Notes "GWM" steht für Gleichstrom- oder Wechselstromspeisung und Mittelwelle. Exportversion; produziert wurden auch Varianten mit Spartransformator, dieser transformiert die Netzspannung 220VAC auf 120VAC zur Speisung des Chassis (gedruckte Schaltung). Chassis nicht netzgetrennt, Wurfantenne. Spartrafo als Heiztrafo für Serienheizung, gedruckte Schaltung - nicht Netzgetrennt, Wurfantenne.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Jens Dehne. See "Data change" for further contributors.
