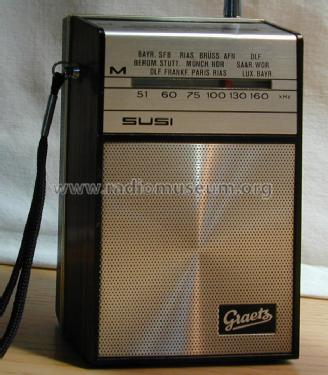

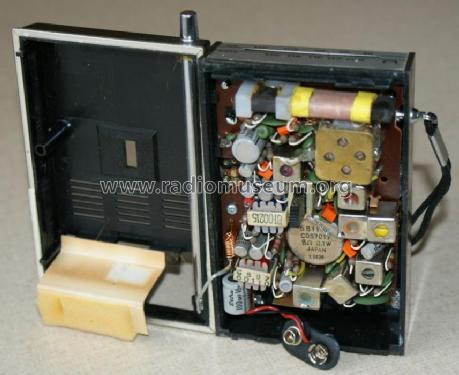

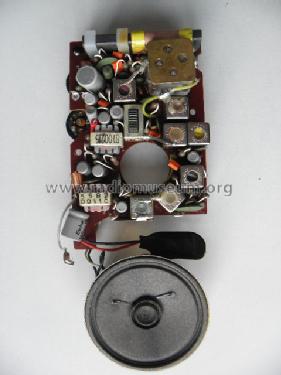

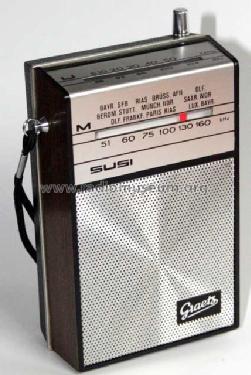

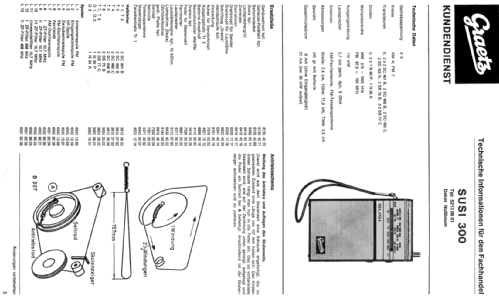

For model Susi 300 52130601, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SC461 2SC461 2SC460 1N34A 2SC460 1N60 1N60 2SC458 2SB75 2SB77 2SB77

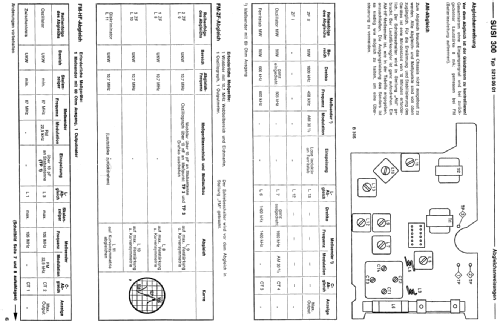

Main principle Super-Heterodyne (Super in general); ZF/IF 458/10700 kHz; 3 AF stage(s)
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.12 W (unknown quality)
from Radiomuseum.org Model: Susi 300 52130601 - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 74 x 118 x 40 mm / 2.9 x 4.6 x 1.6 inch
Notes UKW: 87,5 - 104 MHz
MW: 515 - 1605 kHz

Gehäuse: Dekor Nussbaum.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Collectors' prices
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
