• Year
  • 1967
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 112024

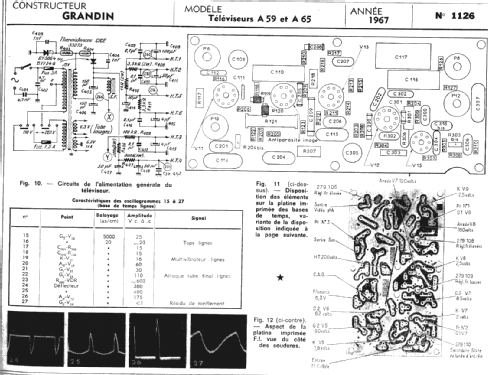

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 14
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: A59 - Grandin, Cristal-Grandin SFRT;
  • Shape
  • Tablemodel, with any shape - general.
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
