Okean {Океан} 221

Okean {Океан} 221; Grodnenskij ' (ID = 262504) Radio Okean {Океан} 221; Grodnenskij ' (ID = 262505) Radio
Okean {Океан} 221; Grodnenskij ' (ID = 262506) Radio
Use red slider bar for more.
Okean {Океан} 221; Grodnenskij ' (ID = 262504) Radio

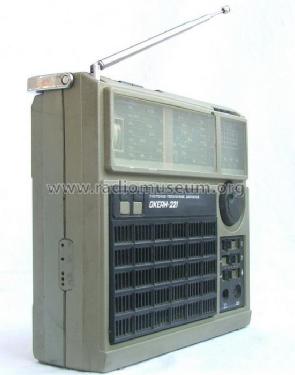

Grodnenskij ": Okean {Океан} 221 [Radio] ID = 262504 746x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model Okean {Океан} 221, Grodnenskij "Radiopribor" Works; Grodno (Belarus):
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Grodnenskij "Radiopribor" Works; Grodno (Belarus)
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127; 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Okean {Океан} 221 - Grodnenskij "Radiopribor"
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 280 x 96 mm / 13 x 11 x 3.8 inch
Notes Coverage MW, LW, 4 SW bands and FM. Electronic band switch.
Special DC 12 V plug - for external DC block or autocar power supply.
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 160.00 RUR

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
