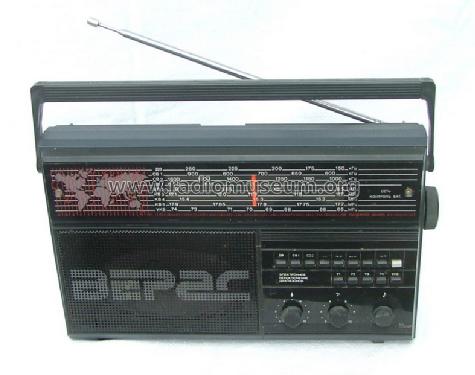

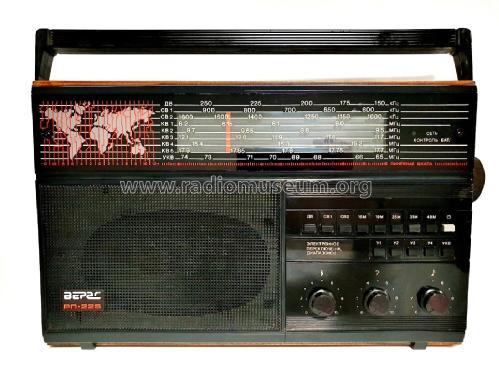

Okean Veras {Океан Верас} RP-225 {РП-225}

Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 1459079) Radio

Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 2113234) Radio
Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 2115893) Radio Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 2115892) Radio
Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 2115894) Radio Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 2115895) Radio
Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 220508) Radio Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 220509) Radio
Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 220512) Radio Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 220511) Radio
Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 838438) Radio Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 982852) Radio
Use red slider bar for more.
Okean Veras {Океан Верас} RP-225 {РП-225}; Grodnenskij ' (ID = 2115893) Radio
Grodnenskij ": Okean Veras {Океан Верас} RP-225 {РП-225} [Radio] ID = 2115893 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Okean Veras {Океан Верас} RP-225 {РП-225}, Grodnenskij "Radiopribor" Works; Grodno (Belarus)

Country:  Soviet Union
Manufacturer / Brand:  Grodnenskij "Radiopribor" Works; Grodno (Belarus)
Year: 1990 Category: Broadcast Receiver - or past WW2 Tuner
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / (6 x 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Okean Veras {Океан Верас} RP-225 {РП-225} - Grodnenskij "Radiopribor"
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 318 x 192 x 78 mm / 12.5 x 7.6 x 3.1 inch
Notes Coverage 2 MW, LW, 5 SW and FM. Four fix radio stations on FM. Electronic band swich. Special DC 12 V plug - for external DC block or autocar power supply.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Collectors' prices
Mentioned in - - Data from my own collection

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Grodnenskij "Radiopribor" Works; Grodno (Belarus)
Here you find 3 models, 3 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
