• Country
• Germany

• Manufacturer / Brand
• Groß, Ernst, GmbH; Sömmerda/Thür. (Ostd.)

• Year
• 1948 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 120539

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

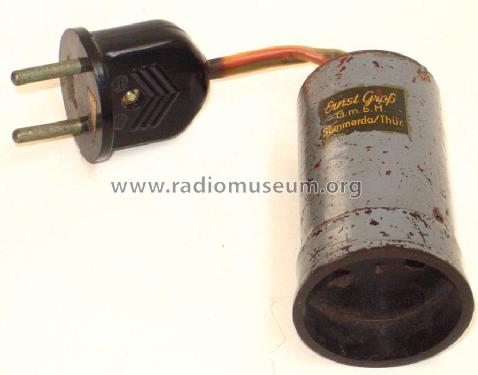

• Model: RF101 - Groß, Ernst, GmbH; Sömmerda/Th

• Dimensions (WHD)
• 42 x 180 x 0 mm / 1.7 x 7.1 x 0 inch

• Notes
• Störschutzfilter für Rundfunkempfänger 220V, max. 0,3 A, extern zwischen Steckdose und Empfänger gesteckt.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
