For model The Bonnet Box 818, Guild Radio & Television Co.; Inglewood (CA):
Cabinet front

Country:  United States of America (USA)
Manufacturer / Brand:  Guild Radio & Television Co.; Inglewood (CA)
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 18: 6BQ7A 6AB4 12AT7 6BE6 6DA5 6BA6 6AU6 6AU6 6AL5 6267 6267 12AX7 12AX7 6BQ5 6BQ5 6BQ5 6BQ6 5U4
Main principle Superhet with RF-stage; ZF/IF 455/10800 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: The Bonnet Box 818 - Guild Radio & Television Co.;
Material Wooden case
Shape Console with any shape - in general
Notes

The Guild Radio Model 818 "The Bonnet Box" is an AC operated 18 Tube FM-AM Tuner and Amplifier with 4 Speed Automatic Record Changer.

There exists a later updated version of the Bonnet Box with FM-Stereo.

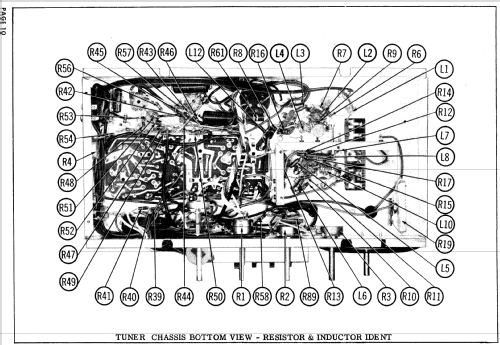

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 2-59, Set 431, Folder 11)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Guild Radio & Television Co.; Inglewood (CA)
Here you find 24 models, 22 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
