Guild Radio &: Old Timer [Radio] ID = 1232701 434x929
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 12BA6 12BE6 12AU6 17EW8 12AV6 35EH5 | ||||
|---|---|---|---|---|---|
| schematic requested | |||||
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 60 cycles 120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm |
| Power out | 1 W (unknown quality) |
| from Radiomuseum.org | Model: Old Timer - Guild Radio & Television Co.; |
| Material | Wooden case |
| Shape | Design Radio or Novelty / Gadget - fancy or unusual shape. |
| Dimensions (WHD) | 13 x 31 x 8 inch / 330 x 787 x 203 mm |

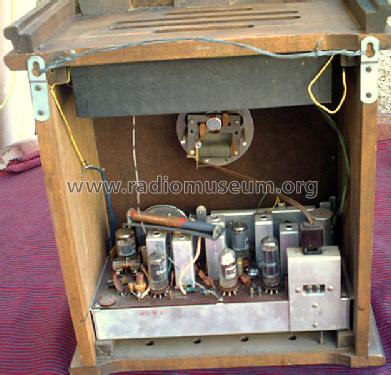

| Notes | This clock radio in the form of a "grandfather clock", called "Old Timer", hangs on a wall. The height listed includes the chimes that hang below. A picture of this collectable AM/FM radio is on page 341 of Stein's volume 2. The plate says 120 VAC-60 HZ-115 watts. The radio part can be closed (hided). 2 chimes on chains which hang below the radio. |
| External source of data | My own collection |
| Source of data | Machine Age to Jet Age II |
Model page created by Marvin J. Glassman. See "Data change" for further contributors.
