Gondolier GP42
Hacker Radio Ltd., Maidenhead
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Hacker Radio Ltd., Maidenhead
- Year
- 1969
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 169387

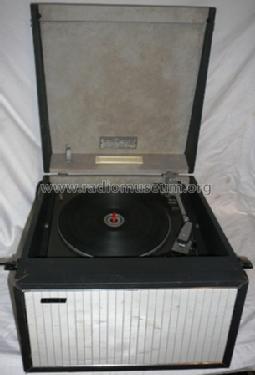

Front View
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 inch = 25.4 cm
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Gondolier GP42 - Hacker Radio Ltd., Maidenhead
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Fitted with a Garrard SP25 Mk II single play deck but it was also available with a Garrard 2025 TC autochanger. Sound Quality is astounding and these were known as the Rolls Royce of Record Players in their time.
Can be adapted for Stereo with the AL42 amplified speaker.
- Author
- Model page created by Nigel Robinson. See "Data change" for further contributors.
