• Country
• Australia

• Manufacturer / Brand
• Halco Radio: Nedlands WA

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332712

• Number of Tubes
• 8

• Valves / Tubes
• 6D6 6J7 76 6D6 6B8 6F6 6F6 5Z3

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220-250 AC Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

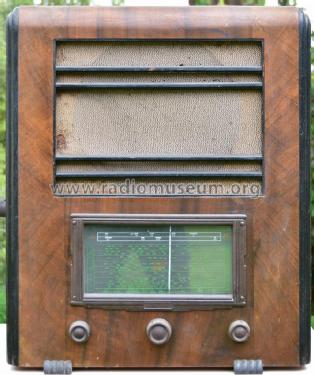

• Model: Dual wave - Halco Radio: Nedlands WA

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 23 x 19.25 x 13 inch / 584 x 489 x 330 mm

• Author
• Model page created by Garry Blake. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Halco Radio: Nedlands WA
