• Country
• Great Britain (UK)

• Manufacturer / Brand
• Halcyon Wireless; London

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104922

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• VP13C SP13C Pen36C UR1C

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 190-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 3401 - Halcyon Wireless; London

• Shape
• Tablemodel, with any shape - general.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)

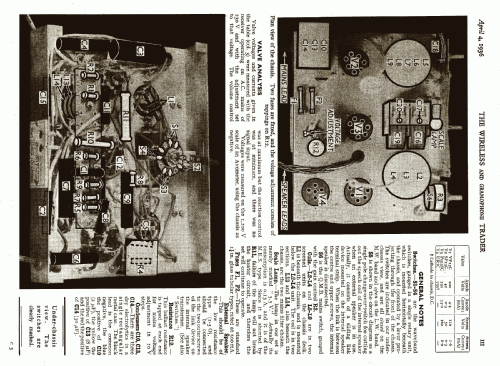

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (95)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 36 models, 14 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
