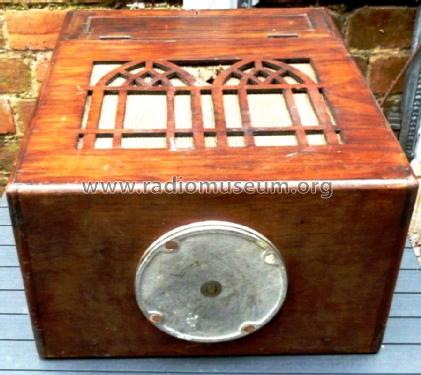

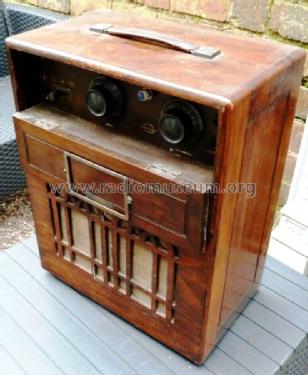

Portable Five Receiver

Halcyon Wireless; London

  • Year
  • 1927
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 202598

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF with regeneration
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Portable Five Receiver - Halcyon Wireless; London
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Two HF valves, choke-coupled and aperiodic, capacity-controlled reaction. With built-in Celestion loudspeaker.
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
