For model 14TS780M Ch= A2010, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:

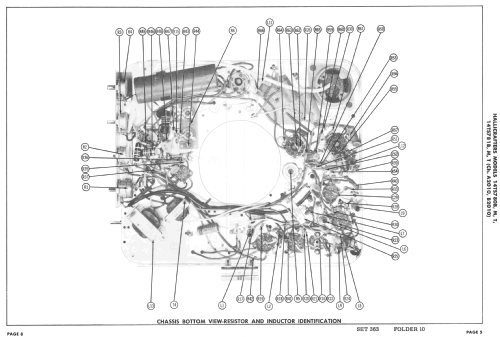

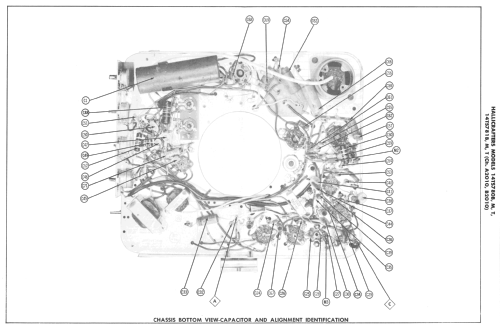

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 13: 3BC5 5CL8 5B8 5B8 6AW8A 3DT6 12CA5 12L6GT 6SN7GTB 12DQ6A 19AU4GT 1X2B 14RP4A
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 14TS780M Ch= A2010 - Hallicrafters, The; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Hallicrafters model 14TS780M is a 14" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis A2010, VHF tuner 1-3067 and picture tube 14RP4A.

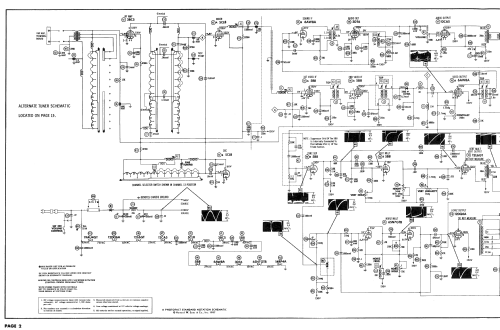

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 363 Folder 10 dated 7-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
