17-860H Ch= Y800D
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1951 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 130683
Original-Prospect

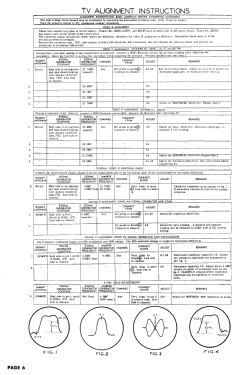

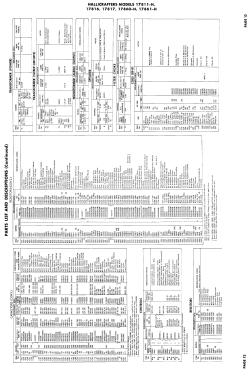

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6CB6 6J6 6CB6 6CB6 6CB6 6AL5 6CB6 6AU6 6AL5 6SQ7 or 6AV6 6AQ5 6SN7GT or 12AU7 6SN7GT or 12AU7 6S4 6SN7GT 6AU5 6W4GT 1B3GT 6AX5GT or 6X5 5U4G 6BA6 6BE6 6BA6 17BP4A
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17-860H Ch= Y800D - Hallicrafters, The; Chicago,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 39 x 36.38 x 21.5 inch / 991 x 924 x 546 mm
- Notes
-
Hallicrafters model 17860-H is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with AM broadcast band radio & 3-speed changer for 7, 10 or 12" records, VHF tuner ID961 and picture tube 17BP4A, hand-rubbed striped mahogany, doors.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 152, folder 3A, dated 1951)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 156, folder 6, dated 1-52)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 898 models, 468 with images and 493 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
