5R10A; Hallicrafters, The; (ID = 1416568) Radio

5R10A; Hallicrafters, The; (ID = 1416569) Radio
5R10A; Hallicrafters, The; (ID = 265418) Radio 5R10A; Hallicrafters, The; (ID = 265419) Radio
5R10A; Hallicrafters, The; (ID = 265420) Radio 5R10A; Hallicrafters, The; (ID = 1416269) Radio
5R10A; Hallicrafters, The; (ID = 1416270) Radio 5R10A; Hallicrafters, The; (ID = 1436657) Radio
5R10A; Hallicrafters, The; (ID = 1436658) Radio 5R10A; Hallicrafters, The; (ID = 1436659) Radio
5R10A; Hallicrafters, The; (ID = 1436660) Radio 5R10A; Hallicrafters, The; (ID = 2050548) Radio
Use red slider bar for more.
5R10A; Hallicrafters, The; (ID = 265418) Radio

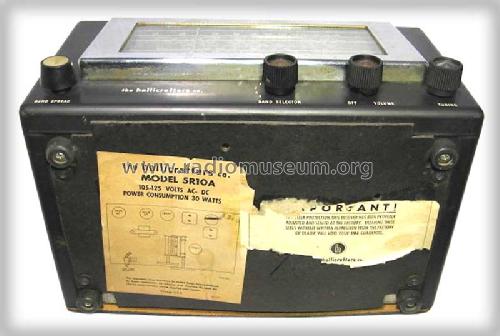

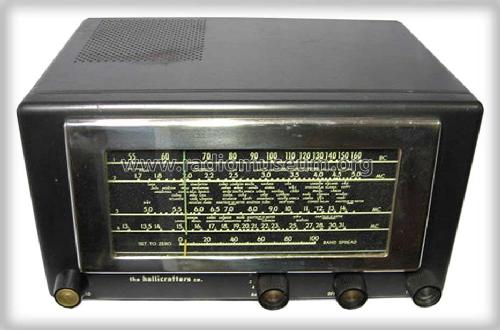

Hallicrafters, The;: 5R10A [Radio] ID = 265418 933x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5R10A, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:
Ebay Nr. 120043320989 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1951–1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5R10A - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 330 x 191 x 225 mm / 13 x 7.5 x 8.9 inch
Notes The Color of this model is smooth "Smokey Black", no difference between Model 5R10A and 5R100A except the finish of the case and IF tube.

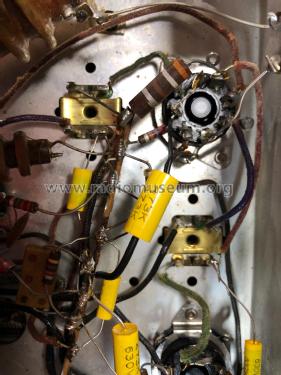

A guest, Bob F.Maccubbin from Springville, NY USA, owns a 5R10A modified by factory to operate as Conelrad Alarm monitor. This set shows an additional knob and a large pilot light on the front panel. Inside one more tube, probably a twin triode, and a relay are visible.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 40.00 $
Source of data Radios by hallicrafters
Mentioned in Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1952, page 605.)

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Here you find 822 models, 446 with images and 395 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Hallicrafters, The;: 5R10A
Threads: 1 | Posts: 1
Hits: 222     Replies: 0
hallicraft: Service Instructions
Martin Bösch
26.Jan.20
  1

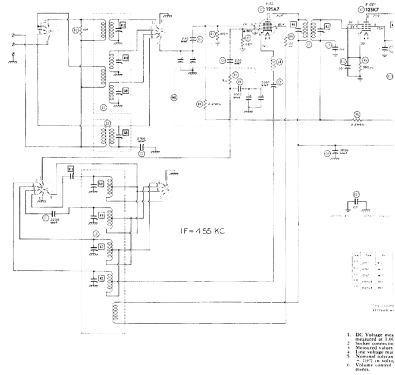

The service instructions can be found here, to owners of the set (who have contributed pictures to rm.org), I can offer to send you the original instructions booklet which I have scanned.
Kind regards Martin
