CRX-1

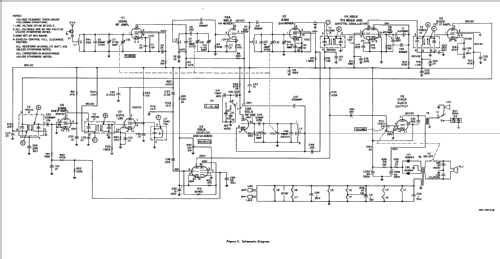

CRX-1; Hallicrafters, The; (ID = 770485) Receiver-C

CRX-1; Hallicrafters, The; (ID = 770490) Receiver-C

CRX-1; Hallicrafters, The; (ID = 770491) Receiver-C
CRX-1; Hallicrafters, The; (ID = 266931) Receiver-C CRX-1; Hallicrafters, The; (ID = 770713) Receiver-C
CRX-1; Hallicrafters, The; (ID = 770715) Receiver-C CRX-1; Hallicrafters, The; (ID = 770716) Receiver-C
CRX-1; Hallicrafters, The; (ID = 770717) Receiver-C CRX-1; Hallicrafters, The; (ID = 1695524) Receiver-C
CRX-1; Hallicrafters, The; (ID = 1695525) Receiver-C CRX-1; Hallicrafters, The; (ID = 1695526) Receiver-C
Use red slider bar for more.
CRX-1; Hallicrafters, The; (ID = 266931) Receiver-C
Hallicrafters, The;: CRX-1 [Receiver-C] ID = 266931 520x226
Select picture or schematic to display from thumbnails on the right and click for download.
For model CRX-1, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX:
By courtesy of William Kendrick, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1962/1963 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 9: 12BA6 6BL8 6BA6 6BL8 12BA6 6BA6 6DT6 6BL8 12AQ5
Main principle Superhet, double/triple conversion; ZF/IF 455 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: CRX-1 - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 13.5 x 5.75 x 8 inch / 343 x 146 x 203 mm
Notes 2nd IF 4.5MHz. Silicon diodes rectifier. The range of 30 to 50 MHz is for government and non-government, police, fire, forestry, highway and railroad services in fixed and mobile communication use.
The set features vernier tuning drive, space for 2 switch selectable fixed frequency crystals.
Price in first year of sale 100.00 $
Collectors' prices
Source of data Radios by hallicrafters
Literature/Schematics (4) Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1276. (Order=57A 7475C))

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Here you find 822 models, 435 with images and 389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Hallicrafters, The;: CRX-1
Threads: 1 | Posts: 3
Hits: 1645     Replies: 2
hallicraft: CRX-1 (CRX1);
Jürgen Bauch
26.May.10
  1

Ich besitze seit kurzem einen Halicrafter CRX 1.Leider war es mir bis jetzt noch nicht möglich rauszufinden wozu die Frequenz 30-50 MHz eigentlich verwendet wurde ?

Wer kann weiterhelfen ?



Jürgen Bauch

Martin Bösch
26.May.10
  2

Vorgänger der Geräte der CRX-Reihe waren die CIVIC PATROL receivers S-81 und S-82, gemäss Chuck Dachis "they were the forerunners of the special services and police monitors of the present".
Lieber Gruss M. Bösch

Georg Richter
26.May.10
  3

Hallo Herr Bauch,

bei diesem Modell habe ich als Ergänzung der Bemerkung folgendes vorgeschlagen:

"The range of 30 to 50 MHz is for government and non-government, police, fire, forestry, highway and railroad services in fixed and mobile communication use."

Das gilt sinngemäss auch für CRX-4, CRX100CRX103 und CRX106, sowie andere Modelle mit diesem Wellenbereich:

Beste Grüsse,

GR


Hallicrafters, The;: CRX-1
End of forum contributions about this model
