- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1972–1974
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 80644

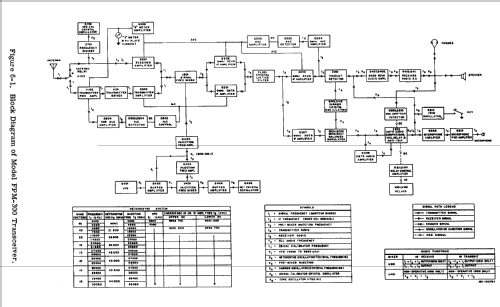

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 33
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 9000 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 105-125 / 210-250 / 11-15,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: FPM-300 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 12.75 x 5.5 x 10.75 inch / 324 x 140 x 273 mm
- Notes
-
3 IC's, 3 bridge rectifiers, 24 diodes, covers 80 through 10 meters, input power 250 watts P.E.P SSB, 180 watts CW, features VOX, PTT, crystal lattice filter, 25 KHz crystal calibrator, AALC, semi-automatic CW break-in, multi-purpose meter and built in 12 volt DC and 120 volt AC power supply, options include the HA-60 cooling fan and the MR-300 mobile mounting kit
- Net weight (2.2 lb = 1 kg)
- 11.3 kg / 24 lb 14.2 oz (24.89 lb)
- Price in first year of sale
- 595.00 $
- Source of data
- Radios by hallicrafters
- Mentioned in
- The Hallicrafters Story 1933-1975, de Henseler
- Author
- Model page created by a member from D. See "Data change" for further contributors.
