- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1951–1954
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 83161
eBay seller: surfcaster43 (USA). #9702554517
eBay seller: surfcaster43 (USA). #9702554517
eBay seller: surfcaster43 (USA). #9702554517
R-46 for restoration.

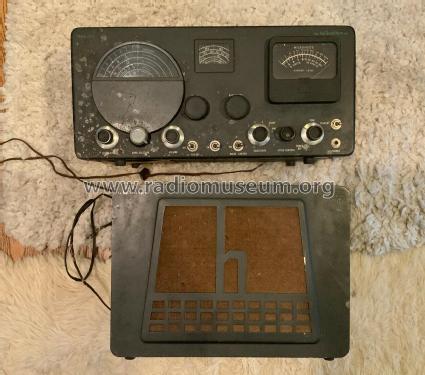

Hallicrafters R-46 front

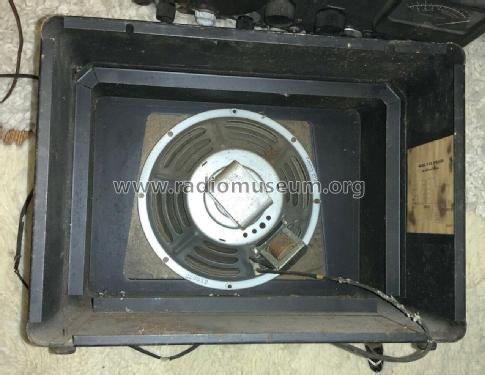

Hallicrafters R-46 back
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: R-46 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15 x 11 x 11 inch / 381 x 279 x 279 mm
- Notes
- Tabletop speaker with 5 k ohm matching transformer, matches the SX-62, SX-71, SX-73, SX-88 and others.
- Price in first year of sale
- 20.00 $
- Source of data
- Radios by hallicrafters
- Literature/Schematics (1)
- 1951 Newark catalog Nº 51
- Author
- Model page created by a member from D. See "Data change" for further contributors.
