R-48

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1961–1969

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
83147

Schematics

R-48; Hallicrafters, The; (ID = 2081003) Speaker-P — Hallicrafters, The; R-48 (3)

R-48; Hallicrafters, The; (ID = 2053320) Speaker-P — Hallicrafters, The; R-48 (1)

R-48; Hallicrafters, The; (ID = 2053321) Speaker-P — Hallicrafters, The; R-48 (1)

R-48; Hallicrafters, The; (ID = 2053322) Speaker-P — Hallicrafters, The; R-48 (1)

R-48; Hallicrafters, The; (ID = 752007) Speaker-P — Hallicrafters, The; R-48 (2)

R-48; Hallicrafters, The; (ID = 752008) Speaker-P — Hallicrafters, The; R-48 (2)

R-48; Hallicrafters, The; (ID = 168800) Speaker-P — Hallicrafters, The; R-48 (2)
Q= prospectus

R-48; Hallicrafters, The; (ID = 1404586) Speaker-P — Hallicrafters, The; R-48 (2)

R-48; Hallicrafters, The; (ID = 1690234) Speaker-P — Hallicrafters, The; R-48 (2)

R-48; Hallicrafters, The; (ID = 1690235) Speaker-P — Hallicrafters, The; R-48 (2)

R-48; Hallicrafters, The; (ID = 1695515) Speaker-P — Hallicrafters, The; R-48 (2)

R-48; Hallicrafters, The; (ID = 2567896) Speaker-P — Hallicrafters, The; R-48 (1)

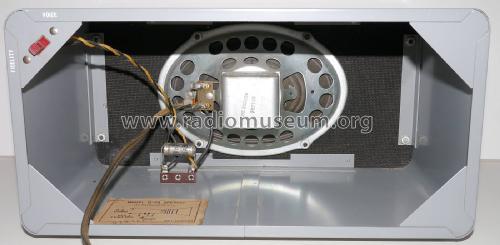

Hallicrafters R-48 front

R-48; Hallicrafters, The; (ID = 2567897) Speaker-P — Hallicrafters, The; R-48 (1)
Hallicrafters R-48 schema

R-48; Hallicrafters, The; (ID = 2567898) Speaker-P — Hallicrafters, The; R-48 (1)
Hallicrafters R-48 switch

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Power type and voltage
No Power needed

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Material
Metal case

from Radiomuseum.org
Model: R-48 - Hallicrafters, The; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
13 x 9 x 7 inch / 330 x 229 x 178 mm

Notes
5" × 7" speaker, 3.2 ohm, crossover network with rear mounted "Voice/Normal" switch, matches the SX-111, SX-140 and others.

Price in first year of sale
20.00 $

Source of data
Radios by hallicrafters

Literature/Schematics (2)
Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1276.)

Literature/Schematics (3)
Sears, Roebuck Catalogs (Silvertone) (Summer 1964, page 1404.)

Literature/Schematics (4)
Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1231. (Order=57G 7457))

Author
Model page created by a member from D. See "Data change" for further contributors.
