Reproducer R-42

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1946–1948

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
82796

Schematics

Reproducer R-42; Hallicrafters, The; (ID = 1711278) Speaker-P — Hallicrafters, The; Reproducer R-42 (3)

Reproducer R-42; Hallicrafters, The; (ID = 266336) Speaker-P — Hallicrafters, The; Reproducer R-42 (1)

Reproducer R-42; Hallicrafters, The; (ID = 266337) Speaker-P — Hallicrafters, The; Reproducer R-42 (1)

Reproducer R-42; Hallicrafters, The; (ID = 1339826) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)

Reproducer R-42; Hallicrafters, The; (ID = 1339827) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)

Reproducer R-42; Hallicrafters, The; (ID = 1339829) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)

Reproducer R-42; Hallicrafters, The; (ID = 1339830) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)

Reproducer R-42; Hallicrafters, The; (ID = 1557922) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)

Reproducer R-42; Hallicrafters, The; (ID = 1712746) Speaker-P — Hallicrafters, The; Reproducer R-42 (1)

Reproducer R-42; Hallicrafters, The; (ID = 1712747) Speaker-P — Hallicrafters, The; Reproducer R-42 (1)

Reproducer R-42; Hallicrafters, The; (ID = 1712748) Speaker-P — Hallicrafters, The; Reproducer R-42 (1)

Reproducer R-42; Hallicrafters, The; (ID = 1787424) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)

Reproducer R-42; Hallicrafters, The; (ID = 2581013) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)
Picture from Richard Pecoroni.

Reproducer R-42; Hallicrafters, The; (ID = 2581014) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)
Picture from Richard Pecoroni.

Reproducer R-42; Hallicrafters, The; (ID = 2581015) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)
Picture from Richard Pecoroni.

Reproducer R-42; Hallicrafters, The; (ID = 2581016) Speaker-P — Hallicrafters, The; Reproducer R-42 (2)
Picture from Richard Pecoroni.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

Material
Metal case

from Radiomuseum.org
Model: Reproducer R-42 - Hallicrafters, The; Chicago,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
17 x 11.75 x 12.5 inch / 432 x 298 x 318 mm

Notes

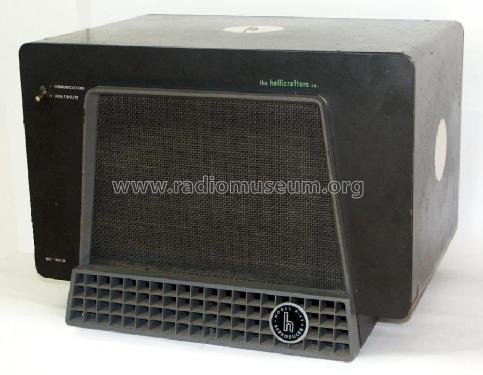

The R-42's steel cabinet was designed to use the bass reflex principle to provide high quality audio from 70 to 7500 cycles. It employs a crossover network to switch between "Communications" (voice) and "High Fidelity" (full audio range of speaker). While the R-42 was intended to be used with Hallicrafters FM broadcast capable receivers (specifically the SX-42, SX-62, and S-47), it could be used with any receiver or audio amplifier with an output impedance of 500/600 ohms.

Price in first year of sale
30.00 $

Source of data
Radios by hallicrafters

Author
Model page created by a member from D. See "Data change" for further contributors.
